Bottom price foton 10cubic meter cement mixer price 12 cubic meter concrete mixer truck for sale
Sinotruk Howo 10m3 Diesel mobile concrete mixer trucks are mainly used for mixing and carrying concrete in long distance. Then can delay concrete primary concretion, avoid concrete stratification and separation, ensure the concrete can be normal at work site.
Our concrete truck mixers adopt European modern style, attractive appearance, rational structure and stable performance. We can provide trucks with different capacity, such as 8m³,9m³, 10m³,12m³,14m³,15m³,16m³,etc.
We can match upper mixer with different chassis truck according to customers’ request, such as DONGFENG, SINOTRUK, SHAMAN, AUAMN, FAW, JAC HONGYAN, BEIBEN, DAYUN, HINO, MISUBISHI, ISUZU chassis, etc
Main Features of mobile concrete batching plant:
1. Control system
Adopt three-point control mode, by control bar on both rear sides and in-cab device to control the drum easily and conveniently.
2. Hydraulic driving system
Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure ,excellent performance, to meet customers’ various special need.
3. Water supply system
Have various volume water tanker, can feed the water mixing and cleaning, enlarged water pipe and various feeding solution. Can convenient customer, water feeding solution can use air pressure ,reducer pump ,electronic pump, etc, can meet different requirement.
4. Blade anti-wear protection
Modified logarithmic helical curve type of blade .In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle life, but also synchronizing the wear of drum and blades.
5. Blade process
Blades are made of special cold-forming pressing molder, welded with drum body by new welding process without obvious trance.
6. Humanization design
Lighting device: human-oriented large power tail working lamp at rear part, not only meeting special requirement for night working ,but also ensuring safety of personnel and vehicle.
Step area: adopt pressed steel and attractive appearance, reasonable handrail ensuring safety.
Self-locking in cab, to prevent from mistake operation and ensure security.
Smart equipment: remote operation, water metering, tank mouth seal etc.
Parameters of mobile concrete batching plant:
| Name of Commodity | 10m3 concrete mixer truck |
| Overall dimension | 9040x2500x3850mm |
| Total mass | 25000kg |
| Curb weight | 13120kg |
| Truck parameters |
| Tanker volume | 10m3 |
| Cabin seat | 2 |
| Mixing drum size | Diameter: Φ2300mm Length: 4800mm |
| Charging rate | ≥3 m3/min |
| Top feed hopper dimension | ≥650 mm |
| Discharging rate | ≥2 m3/min |
| Residual rate | ≤0.5% |
| Water supply | Air pressure water supply |
| Water tank capacity | 260L |
| Radiator | 18L |
| A/D angle | 16/24 |
| F/R hang | 1500/2365,1500/2340 |
| Axles | 3 |
| Wheel base | 3825+1350,3800+1400 |
| Axles loading | 7000/18000/18000 |
| Reduction gear | ZF/Bonfiglioli |
| Hydraulic pump | Danfoss/Rexroth |
| Hydraulic motor | Danfoss/Rexroth |
| Accessory | Tool box |
| Chassis parameter |
| Chassis Brand | HOWO |
| Chassis model | ZZ1257M3847C |
| Tyre quantity | 10 |
| Tyre size | 11.00-20 |
| Leaf spring quantity | 9/12 |
| Front track | 2022,2041 |
| Rear track | 1830/1830 |
| Emission standard | China Standards 4 (with urea tank) |
| Fuel type | Diesel |
| Standard | Euro III |
| Engine model | WD615.9 |
| Displacement/power | 9726ml/220kw |
| MIN Ground clearance | 314mm |
| Rated specific | Max speed | 78km/h |
| Economic speed | 62km/h |
| Maximum climbable gradient ( % ) | 70 |
| Minimum turning diameter ( m ) | 17 |
| Maximum torque ( N*m ) / speed ( r/min ) | 1390/1200-1600 1650/1200-1500 |
| Transmission | HW 10-speed ,10 forward speed, 2 reseve speed |
| Frame | 300mm |
| Warranty | 12 months, from the date of supply. |
| Package | Bulk |
Product Tags:
|
|

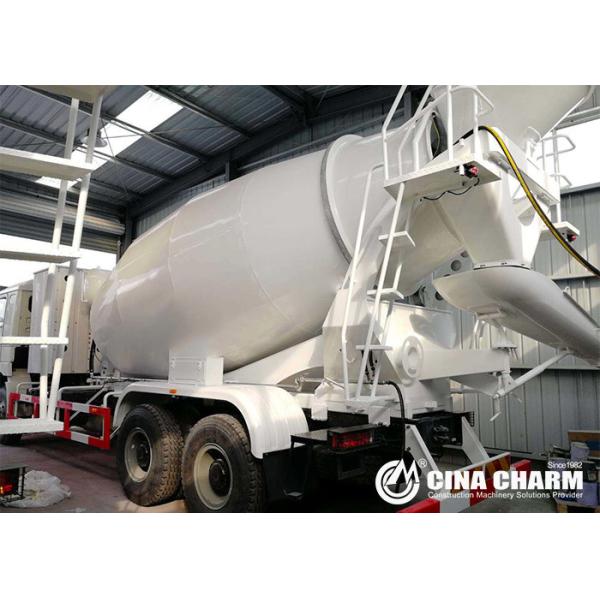

Rational Structure Concrete Mixer Vehicle With 10 Cubic Meter / 12 Cubic Meter Images
|
