RMC Small automatic control system Concrete Batching Plant Price HZS60 mobile concrete batch plants batching plants

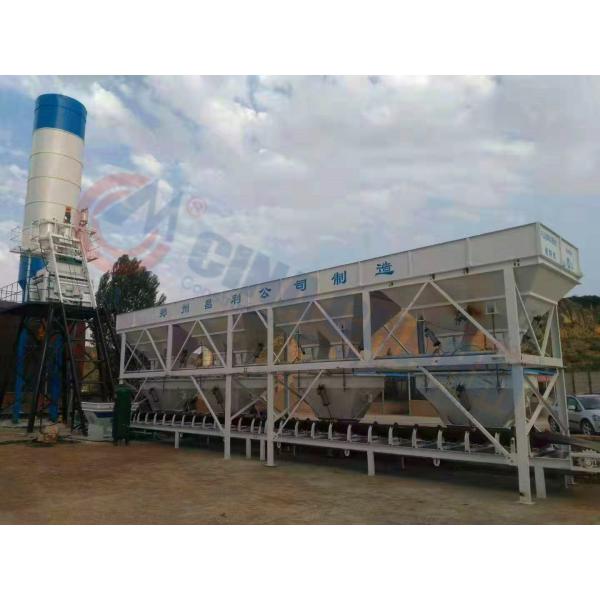

HZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. HZS concrete batching plant is widely used in large and medium-sized building construction, road and bridge, and precast plants. It is the ideal plant for the production of commercial concrete.
JS series double horizontal shaft compulsory concrete mixer is a multi-function mixer. It can mix stiff concrete, plastic concrete, light aggregate concrete and all kinds of mortar, with features of compact structure, stable working, uniform mixing, easy operation and short cycle time.
It can be used independently or combined with PLD batching machine into concrete batching plant.
PLD series concrete batching machine adopts electronic weighing, computer control, digital display, which can automatically finish the batching procedure of 3-6 kinds of aggregates, such as sand, stone or cement. It has features of accurate weight, auto compensation, fast speed and easy operation.
Hopper cumulative weighing, belt cumulative weighing and separate weighing are available.
RMC Small Concrete Batching Plant Price HZS60:
1. Productivity: 60m3/h.
2. Automatic and semi-automatic for your choice.
3. Can be customized.
4. JS type of twin shaft mixer is adopted, with the advantages of good mixing quality and high production efficiency.
5. Computer system can be controlled by manual, semi-automatic, or automatic, with the functions of storing ratio and automatically compensation gap.
6. Various forms of combination can be provided according to customers's requirements.
RMC Small Concrete Batching Plant Price HZS60 main technical paramter:
| Models | HZS60 |
| Production (m³/hr) | 60 |
| Mixer | Models | JS1000 |
| Mixing Power (KW) | 2×22 |
| Output (m³) | 1 |
| Aggregate Size (mm) | ≤60 |
| Hopper | Hopper Capability(m³) | 13 |
| Hopper Quantity | 4 |
| Mixing Cycle (S) | 72(60) |
| Conveyor Capability (t/hr) | 200 |
| Scope and Precision of Weighing | Aggregate (kg) | 2500±2% |
| Cement (kg) | 600±1% |
| Fly ash (kg) | 200±1% |
| Water (kg) | 300±1% |
| Additive(kg) | 30±1% |
| Total Power (KW) (without screw conveyor) | ≈92 |
| Discharge height (m) | ≥3.8 |
